- Air Compressors
- Air Receivers & Pipe System
Belt driven PAC series

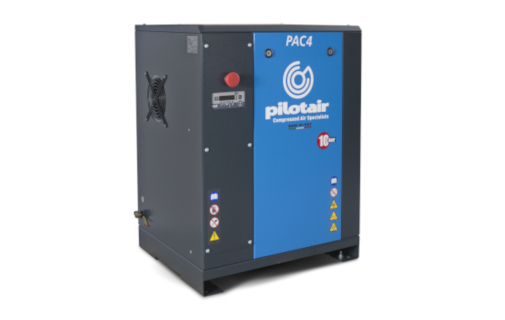

PAC4
PAC15
PAC11-RM-D
4 to 75kW
10 bar operating pressure
 PAC4 |
17.1 cfm (8.1 L/s) / 4kW / 10 bar |
|
PAC5.5 |
22.9 cfm (10.8 L/s) / 5.5kW / 10 bar |
|
PAC7.5 |
35.3 cfm (16.7 L/s) / 7.5kW / 10 bar |
|
PAC11 |
53.0 cfm (25.0 L/s) / 11kW / 10 bar |
|
PAC15 |
65.3 cfm (30.8 L/s) / 15kW / 10 bar |
|
PAC18.5 to 75kW |
||
PAC4-RM to 15-RM |
Receiver Mounted Compressors |
|
PAC Series Brochure |
||
- |
||
- |
||
- |
||
- |
Variable Speed ALTA TEC series
Nobel Series Brochure |
||
ALTA-TEC 7.5 VS |
LOGIN Adv Controller / 7.5kW / 63d(B)A |
|
ALTA-TEC 11-15 VS |
LOGIN Adv Controller/ 11-15 kW /67-68d(B)A |
|
ALTA-TEC 22 VS |
LOGIN Adv Controller / 22kW / 60d(B)A |
|
ALTA-TEC 30-37 VS |
LOGIN Adv Controller / 30-37kW /66-70d(B)A |
|
NOBEL 22VS |
19.3-59.9 L/s / 41-127 cfm / 22 kW / 30.0 hp / 8 bar |
|
NOBEL 30VS |
33.0-80.7 L/s / 70-171 cfm / 30 kW / 40.0 hp / 8 bar |
|
NOBEL 37VS |
44.8-109.9 L/s / 95-233 cfm / 37 kW / 50.0 hp / 8 bar |
|

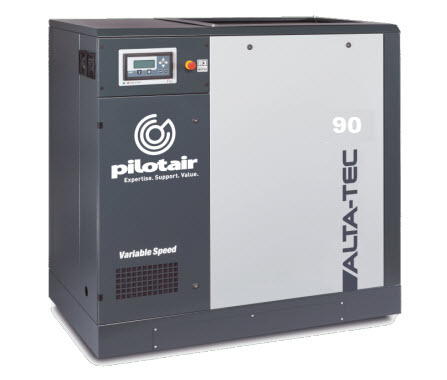

ALTA-TEC 90 VS |
LOGIN Adv Controller / 45-90kW / 72-68d(B)A |
|
- |
||
- |
||
- |
||
- |
||
- |
Oil Free series
Oil Free Series Brochure |
||
OFP2.2 |
285 L/Min / 10.1 cfm / 2.2 kW / 3.0 hp / 116 psi |
|
OFP4 |
485 L/Min / 17.1 cfm / 4 kW / 5.5 hp / 116 psi |
|
OFP5.5 |
730 L/Min / 25.8 cfm / 5.5 kW / 7.5 hp / 116 psi |
|
OFP7.5 |
885 L/Min / 31.2 cfm / 7.5 kW / 10.0 hp / 116 psi |
|
OFP11 |
1320 L/Min / 46.6 cfm / 11 kW / 15.0 hp / 116 psi |
|
Silent Oil Free Series Brochure |
||
- |
Direct drive oil free

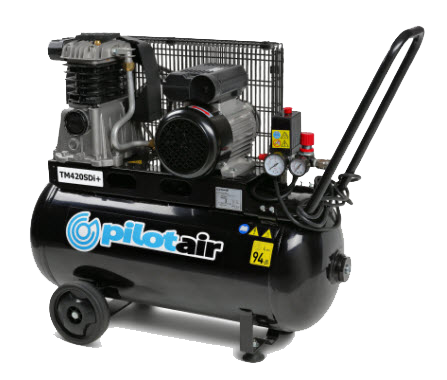

Belt driven TM series
Classic "K" series
Portable and stationary to 10 bar 100L
K11 |
10.4 cfm / 2.25hp / 240v / 145psi / 100L |
|
K17SD |
10.8 cfm / 2.25hp / 240v / 145psi / 100L |
|
K17/15L |
14.8 cfm / 3.0hp / 240v / 145psi / 100L |
|
K25SDL |
13.1 cfm / 3.0hp / 240v / 160psi / 100L |
|
Classic K Series Brochure |
13.1 cfm / 3.0hp / 240v / 160psi / 100L |
Horizontal
2.2 - 15kW up to 12 bar & 600L
K17T |
15.1 cfm / 3.0hp / 415v / 145psi / 58L Receiver |
|
K25L18 |
17.6 cfm / 4.0hp / 415v / 160psi / 100L Receiver |
|
K25/21 |
20.5 cfm / 5.5hp / 415v / 160psi / 147L Receiver |
|
K30 |
30.8 cfm / 7.5hp / 415v / 160psi / 147L Receiver |
|
K30L |
30.8 cfm / 7.5hp / 415v / 160psi / 267L Receiver |
|
K50 |
39.6 cfm / 10hp / 415v / 160psi / 216L Receiver |
|
K50L |
39.6 cfm / 10hp / 415v / 160psi / 600L Receiver |
|
K60 |
60.0 cfm / 15hp / 415v / 160psi / 267L Receiver |
|
K60L |
60.0 cfm / 15hp / 415v / 160psi / 610L Receiver |
|
K100 |
81.6 cfm / 20hp / 415v / 160psi / 316L Receiver |

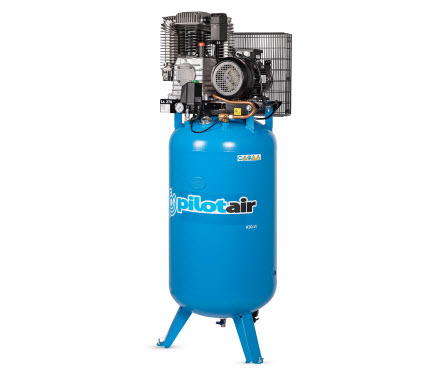

Vertical
Silenced
4.0 to 7.5kW upright receivers
Petrol piston type
Up to 35 CFM
K17PH |
16.3 cfm / GX160 Honda petrol / 145psi / 100L Portable |
|
K17PH-S |
16.3 cfm / GX160 Honda petrol / 145psi / 100L Pallet feet |
|
K17PH-ES |
16.3 cfm / GX160 Honda petrol / 145psi / 100L Pallet feet |
|
K25PS |
14.3 cfm / GX160 Honda petrol / 160psi / 100L Portable |
|
K25PS-S |
14.3 cfm / GX160 Honda petrol / 160psi / 100L Static |
|
K25PR |
21.4 cfm / GX270 Honda Recoil. Start / 160psi / 150L |
|
K25P |
21.4 cfm / GX270 Honda Elec. Start / 160psi / 150L |
|
K30P |
34.7 cfm / GX340 Honda Elec. Start / 160psi / 200L |
Petrol screw type
53 CFM portable
VRK220 |
53.0 cfm / GX670 Honda Elec. Start / 160 psi / Portable / no receiver |
Diesel piston type
Refrigerated Air Dryers
20 to 500 CFM
TFD6 |
21 cfm (9.90 L/s) / 240v / 1/2″ BSP F |
|
TFD10 |
35 cfm (16.50 L/s) / 240v / 1/2″ BSP F |
|
TFD15 |
53 cfm (25 L/s) / 240v / 3/4″ BSP F |
|

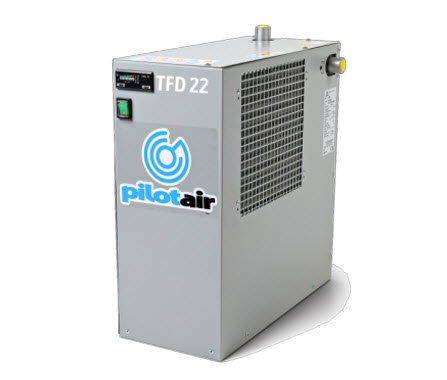

TFD22 |
78 cfm (36.8 L/s) / 240v / 3/4″ BSP F |
|
TFD30 |
106 cfm (50 L/s) / 240v / 1″ BSP F |
|
TFD45 |
159 cfm (75 L/s) / 240v / 1 1/4″ BSP F |
|
TFD120 |
424 cfm (200 L/s) / 415v / 2" BSP F |
|
TFD150 |
530 cfm (258 L/s) / 415v / 2″ BSP F |
Filters
30 to 1500 CFM
FTP-S-X-Z 008 |
30 cfm / 3/8" BSP Ports |
|
FTP-S-X-Z 012 |
42 cfm / 1/2" BSP Ports |
|
FTP-S-X-Z 018 |
65 cfm / 3/4" BSP Ports |
|
FTP-S-X-Z 030 |
116 cfm / 1" BSP Ports |
|
FTP-S-X-Z 055 |
194 cfm / 1" BSP Ports |
|
FTP-S-X-Z 080 |
286 cfm / 1-1/2" BSP Ports |
|
FTP-S-X-Z 120 |
441 cfm / 1-1/2" BSP Ports |
|
FTP-S-X-Z 160 |
593 cfm / 2" BSP Ports |
|
FTP-S-X-Z 250 |
918 cfm / 2-1/2" BSP Ports |
|
FTP-S-X-Z 400 |
1483 cfm / 3" BSP Ports |
PSC Series

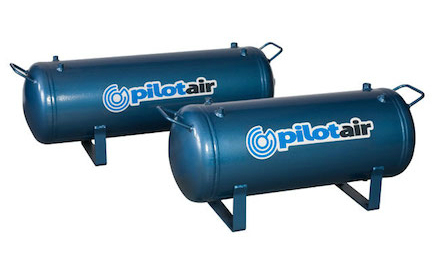

Horizontal Air Receivers
Features
| Product Code | Description | L(mm) | W(mm) | H(mm) |
|
45BR-HS |
Air Receiver - Horizontal/ 45 L /1100 Kpa |
800 |
300 |
450 |
|
3000100 |
Air Receiver - Horizontal/ 100 L /1100 Kpa |
1060 |
370 |
490 |
|
3000150 |
Air Receiver - Horizontal/ 150 L /1100 Kpa |
1320 |
400 |
540 |
|
3000200 |
Air Receiver - Horizontal/ 200 L /1100 Kpa |
1410 |
450 |
665 |
|
3000268 |
Air Receiver - Horizontal/ 268 L /1100 Kpa |
1540 |
490 |
705 |
|
3000500 |
Air Receiver - Horizontal/ 500 L /1100 Kpa |
1890 |
600 |
845 |
|
WorkCover NSW Plant Design Registered |
||||
|
Technical data conforms to +/- 5% Not Air reserves the rig at 0 modification without notice for design and technical improvements |
||||
|
For over 30 years Pilot Air Compressors has been meeting the needs of industry Ask us about your requirements |
||||

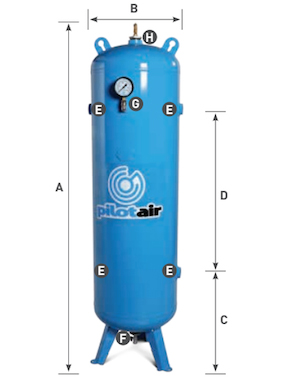

Vertical Air Receivers
Features
| Model | Capacity (L) |
Working Pressure (KPA) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E Inches (BSP) |
F Inches (BSP) |
G Inches (BSP) |
H Inches (BSP) |
|
3100150 |
150 |
1100 |
1550 |
420 |
400 |
820 |
1 ½ " |
2" |
1 ½ " |
2" |
|
3100300 |
300 |
1100 |
1950 |
600 |
540 |
940 |
1 ½ " |
2" |
1 ½ " |
2" |
|
3100600 |
600 |
1100 |
1950 |
700 |
600 |
880 |
1 ½ " |
2" |
1 ½ " |
2" |
|
3101000 |
1000 |
1100 |
2460 |
800 |
720 |
1170 |
1 ½ " |
2" |
1 ½ " |
2" |
|
WorkCover NSW Plant Design Registered |
||||||||||
|
Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements. |
||||||||||
|
For over 3O years Not Air Compressors has been meeting the needs of industry. Ask us about your requirements. |
||||||||||
|
(Available during Pilot Air business hours of operation.) |
||||||||||
Custom Built
Have unique requirements? We have unique solutions? Get in touch with our team today to discuss a custom build tailored to your operations.
